Dependency Graphs

Notice that there are no circular dependencies in any of the generated graphs. Dependency graphs are seen in the generated_docs/dependency_graph directory. The .png files are the generated graphs. All graphs are filtered to exclude the following edges.

• Edges from a class to itself
• Edges from a class to its inner classes
• Edges involving classes not part of the main execution flow
• Edges involving classes not written as part of this project

There are three different graphs, each with a different level of filtering.

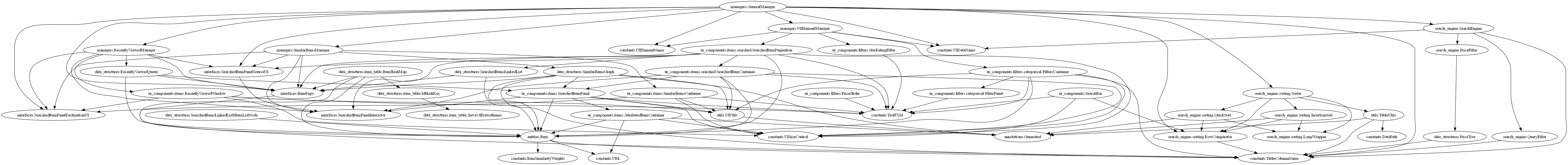

• deps.png - This graph is filtered to only include classes that are part of the main execution flow, but all edges between those classes are included.

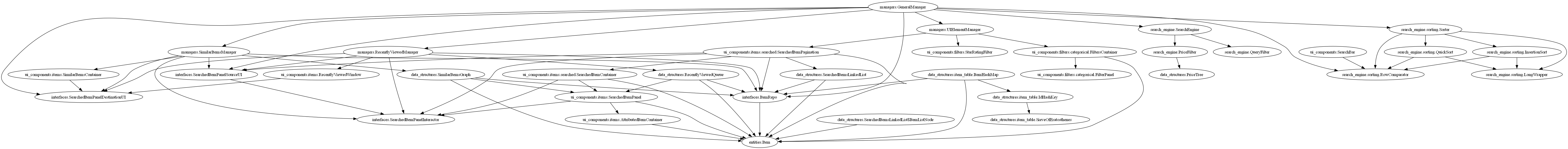

• deps_cleaner.png - This graph excludes the constants, utils, and annotations packages, as these are not important for understanding the main execution flow.

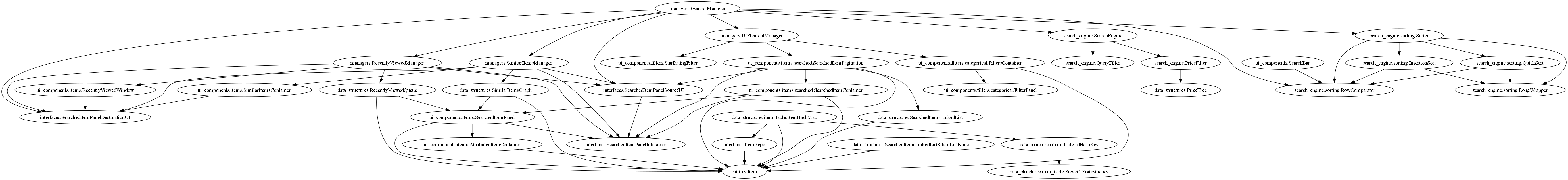

• deps_no_item_repo.png - This graph excludes the ItemRepo class, as it is a large class that is used by many other classes, but is simply an entity accessor interface.

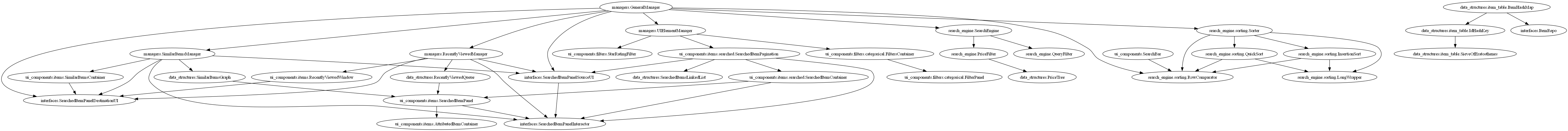

• deps_no_item_repo_no_entities.png - This graph also excludes the Item class, as it is referenced in many places, but it is a simple data class.
